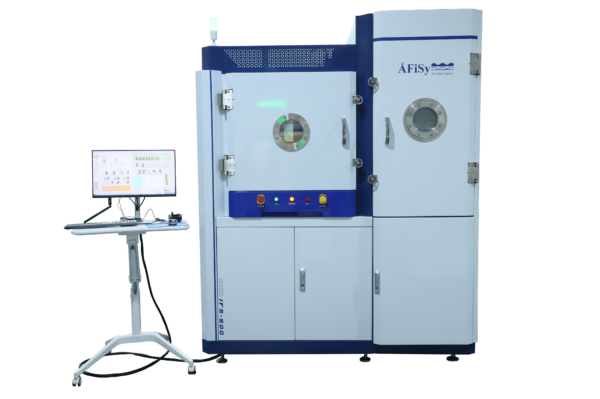

Ion beam polishing machine ÅFiSy IFS500A developed by Changsha AFiSy Technologies has 3-axis and 3-linkage function, and it can process workpieces with a maximum size of 500×500mm, and it has the ability to process flat, spherical, aspherical and free-form, parabolic, etc.
Key features include:
1. Precision: Achieves sub-nanometer surface roughness and angstrom-level surface figure accuracy.
2. Versatility: Suitable for a variety of materials, including glass, ceramics, and metals.
3. Control: Equipped with advanced software for precise control over the polishing process.
4. Reliability: Built for consistent and reliable operation in high-precision manufacturing environments.
This machine is ideal for applications in precision optics manufacturing, where high-quality surface finishing is critical. For more detailed information or inquiries, feel free to contact us.
| name | parameter |
| Processing Capabilities (Maximum workpiece size) | Maximum size 500mm×500mm Maximum thickness: 80mm |
| Machinable surface | Plane, spherical, aspherical, free-form, parabolic, etc. |
| Processable materials | Quartz, microcrystalline, ULE, sapphire, single crystal silicon, silicon carbide, etc. |
| Machinable accuracy | |
| X-axis travel | ≥500mm |
| Y-axis travel | ≥500mm |
| Z-axis travel | ≥500mm |
| Ion source | German radio frequency ion source |
| Neutralizer | Germany |
| Working vacuum establishment time | ≤1 hour |
| Sub-chamber vacuum establishment time | ≤15 minutes |
| Protection function | It has fault alarm protection for unexpected power failure, water failure, gas failure, motion system failure protection, ion source failure protection, etc. |
| Smart Features | It has advanced functions such as intelligent one-key startup, one-key shutdown, scheduled startup, scheduled shutdown, scheduled processing, processing protection, remote assistance, log, etc. |
| Dimensions | 2.5m×2.5m×2.5m |
| Machine weight | 5 tons |
| Power consumption | Max.12KW, Avg.5kW |
